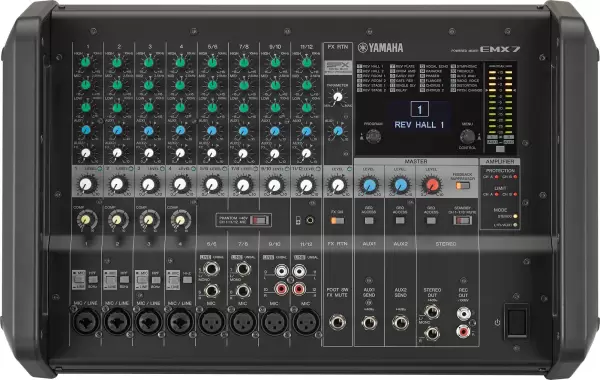

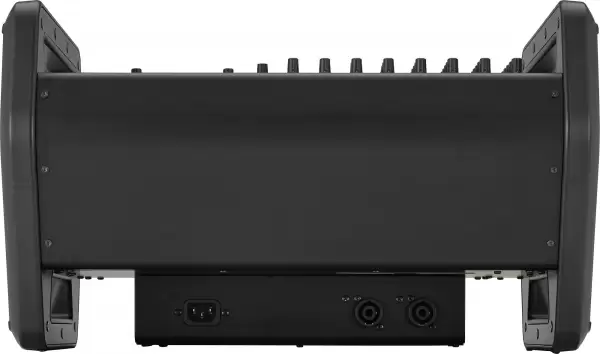

Yamaha Powered Mixer-EMX7

Description

I/O
Inputs: TOTAL 12 channels : 8 Mono (MIC/LINE), 4 Stereo (LINE)
Phantom power: +48 V
Outputs:SPEAKERS [A, B], AUX1 SEND, AUX2 SEND, STEREO OUT [L, R], REC OUT [L, R]
Control and others: FOOT SWITCH : Effect Mute on/off
Bus: Stereo: 1, AUX: 2 (Including FX)
Input Channel Function:
PAD:30 dB (CH1-4)
Hi-Z: Supported (CH4)
HPF: 80 Hz, -12 dB/oct. (CH1–3)
COMP: 1-knob COMP (CH1–4)
On-board processors
DSP: SPX Algorithm 24 programs, Feedback suppressor, Master EQ, Monitor EQ
Power requirements: AC 100-240V, 50Hz/60Hz
Power consumption: 45 W (Idle) / 250 W (1/8 Power)
Dimensions: 465x308x325mm
Net weight: 9.5 kg (20.9 lbs)
