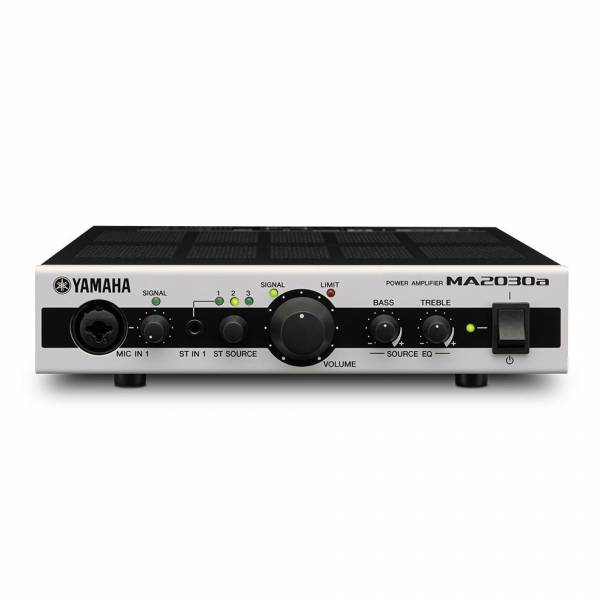

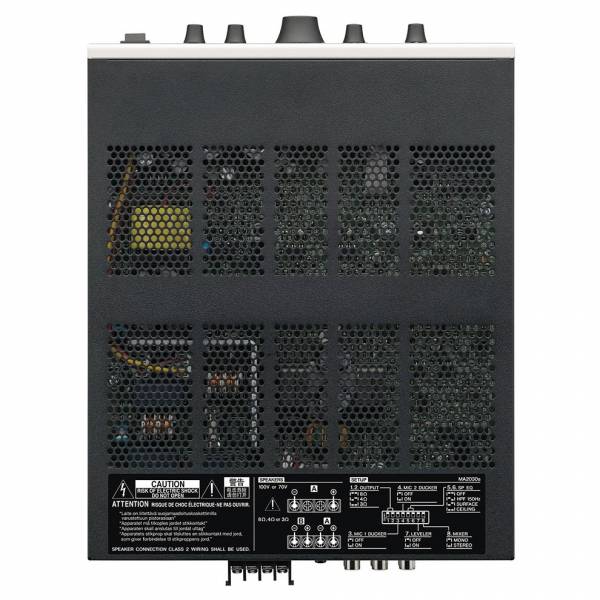

Yamaha Powered Amplifier-MA2030

Description

Output power:
1kHz (THD+N=1%: 3Ω): 30W x 2 (20ms Burst)
1kHz (THD+N=1%: 4Ω): 30W x 2 (20ms Burst)
1kHz (THD+N=1%: 8Ω): 30W x 2 (20ms Burst)
High impedance: 100V line: 60W x 1
High impedance: 70V line: 60W x 1
I/O Connectors:
Speaker Output: Barrier strip x 2 pairs
Line Out: Stereo RCA pin (unbalanced)
Control ports: RJ-45 (for DCP1V4S)
Mic Input: MIC IN 1: XLR combo jack (balanced), MIC IN 2: 3.5mm Euroblock (3-pin, balanced)
Stereo Input: ST IN 1: Stereo mini phone (3.5mm, unbalanced), ST IN 2 / ST IN 3: Stereo RCA pin (unbalanced)
Input Level: Mic input: -76 dBu (Sensitivity), -66 dBu (Nominal), -22 dBu (Max before clip) / Line input: -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip)
Output Level:-10dBV (LINE OUT, Nominal)
Amplifier class: CLASS D
Power requirements: 100V, 120V, 230V-240V; 50Hz/60Hz
Power consumption: 30W (1/8max. power, 3Ω, AC 100V, pink noise at all channels)
Dimensions: 215x54x288mm
Net weight:1.8kg (4.0lbs)
