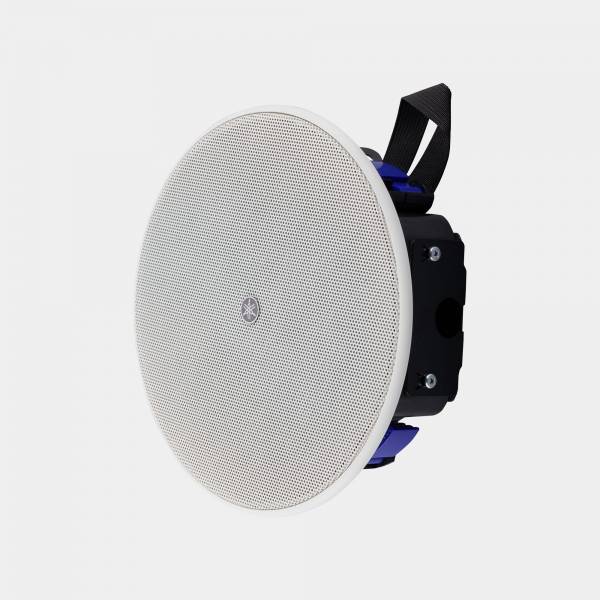

Yamaha Ceiling F-Model Speaker-VXC2FW

Description

VXC Series F Model
Speaker type: Full range, Bass reflex
Frequency range (-10dB): 67 Hz – 20 kHz (Half-space 2π)
Nominal coverage: 160゜conical (Half-space 2π)
Components (LF-HF): 2.5″ Full range unit
Power rating:
NOISE: 15 W
PGM: 30 W
PEAK: 60 W
Nominal impedance: 8 Ω
I/O connectors: Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Cutout size: Ø186 mm (Ø7-5/16″)
Required ceiling board thicknes: 5 mm – 37 mm
Dimensions: 225 mm (8-7/8″) Depth: 89 mm (3-1/2″)
Weight: 1.7 kg (3.7 lbs)
