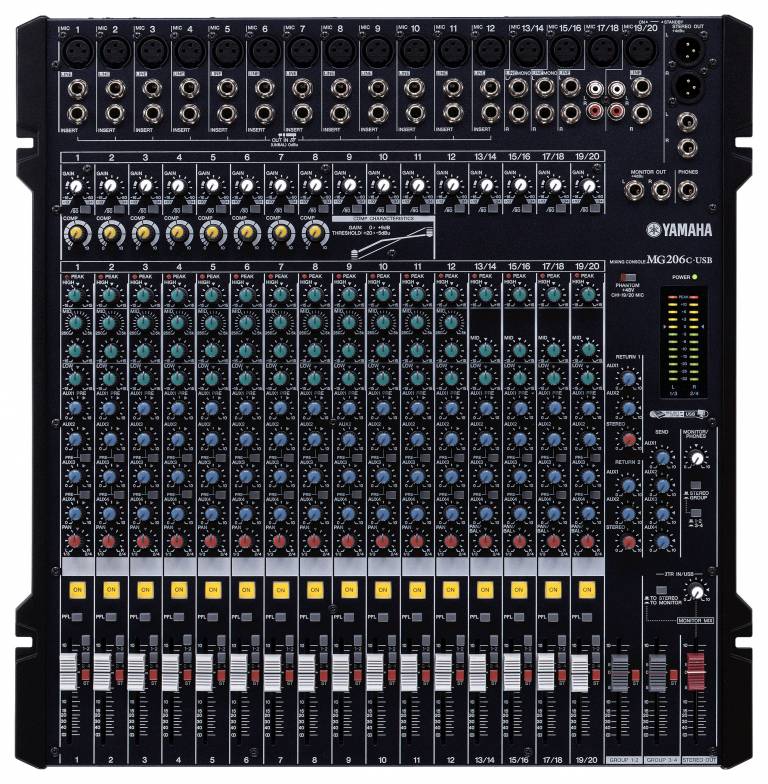

Description
Mixing capability:
Mixing channels:12 Mono + 4 Stereo
GROUP: 4
AUX:4
MAIN: Stereo
Input channel functions: CH1-8: HPF, Compressor, 3-band mid-sweep PEQ, Intert I/O; CH9-12: HPF, 3-band mid-sweep PEQ, Intert I/O; CH13-20: HPF, 3-band PEQ
Mic inputs: 16
Phantom power:+48V DC; ON/OFF
Line inputs:4x Stereo, 2x Return, 2tr in
Control and others: USB Audio, Lamp
Power requirements: Use PA-30 AC Adaptor (AC35VCT, 1.4A); Depend on area of purchase; AC100V, 120V or 220-240V; 50/60Hz
Power consumption: 40W
Dimensions: W: 478mm; 18-13/16in
H:105mm; 4-1/8in
D: 496mm; 19-1/2in (12U)
Net weight: 6.0kg; 13.2lbs
Accessories: OwnerÂ’s Manual, AC adaptor
